Important Questions: Electricity: Magnetic and Heating Effects | Science Class 8 PDF Download

Short Answer Questions

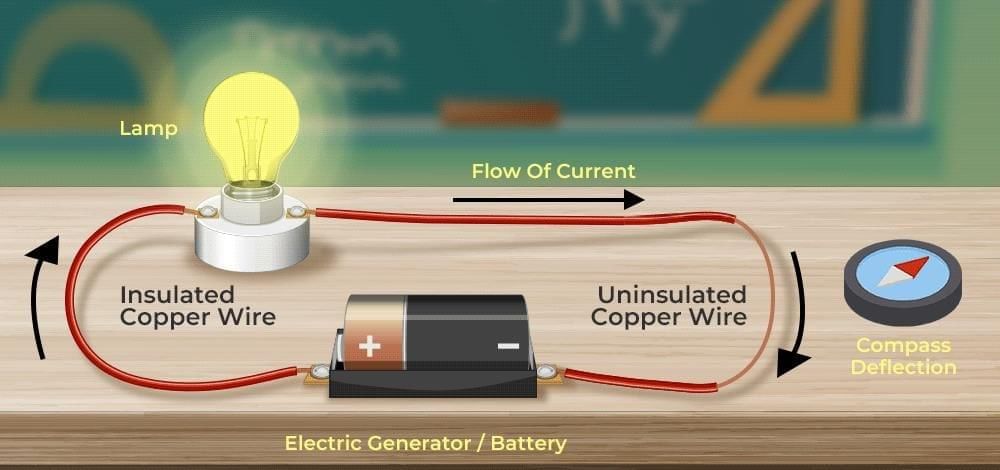

Q1: Why does the magnetic compass needle deflect only when the switch is ON?
Answer:  When the switch is ON, electric current flows through the wire, producing a magnetic field that deflects the compass needle. When the switch is OFF, the current stops, and the magnetic field disappears, so the needle returns to its original north-south position.

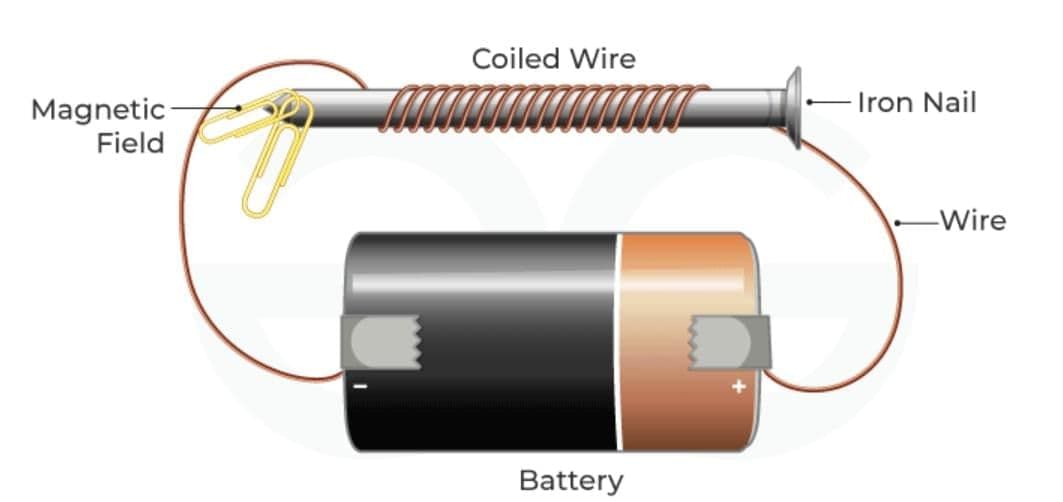

Q2: How would you describe the characteristics of an electromagnet made from a coil and an iron nail?

​Answer: An electromagnet is a temporary magnet that generates a magnetic field when current flows through the coil. Its strength depends on the current and the number of coil turns, and an iron nail core enhances its magnetism.

Q3: How can the magnetic poles of an electromagnet be reversed?
​Answer: The magnetic poles of an electromagnet can be reversed by changing the direction of the electric current through the coil. This reverses the magnetic field, making the north pole become the south pole and vice versa.

Electromagnet

Q4: Why does a lifting electromagnet on a crane drop metal objects when the switch is opened?Answer: When the switch is opened, the electric current stops, causing the magnetic field of the electromagnet to disappear. Without the magnetic field, the electromagnet can no longer hold the metal objects, so they drop.

Q5: Why does a nichrome wire heat up when electric current flows through it?
Answer: When electric current flows through a nichrome wire, its high resistance converts electrical energy into heat energy, causing the wire to warm up. This is known as the heating effect of electric current. The heat generated depends on the wire’s material, thickness, and the current’s magnitude.

Multiple Choice Questions (MCQs)

Question 1:

Why does the nichrome wire get warm while a similar copper wire warms less for the same setup?
Option A: Nichrome has higher electrical resistance than copper
Option B: Copper is an insulator of electricity
Option C: Nichrome reflects heat better
Option D: Copper emits cold

View Answer

Answer: Option A
Solution:

• Heating effect is proportional to current and resistance; nichrome’s greater resistance converts more electrical energy into heat than copper for the same current/time.
• Hence nichrome is preferred as a heating element in appliances.
• Why others are incorrect: B is false—copper is an excellent conductor; C and D are non-physical explanations.

Question 2:

Which change will most strongly increase the strength of an electromagnet, keeping other factors same?
Option A: Replacing the iron core with cardboard
Option B: Decreasing the number of turns
Option C: Increasing the current by using more cells in series
Option D: Using thinner cardboard tape

View Answer

Answer: Option C
Solution:

• Electromagnetic field strength ∝ current and number of turns; more cells in series provide higher voltage, increasing current through the same coil.
• Iron cores also strengthen fields; non-magnetic cores weaken them.
• Why others are incorrect: A reduces field concentration; B lowers ampere-turns; D is irrelevant to magnetism.

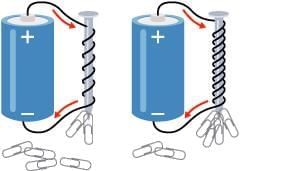

Increasing the number of turns increases the strength

Question 3:

Which observation best proves the magnetic effect of electric current?
Option A: The wire becomes shiny
Option B: The compass needle deflects only when current flows
Option C: The cell gets heavier
Option D: The cardboard vibrates continuously

View Answer

Answer: Option B
Solution:

• Deflection indicates a magnetic field near the wire; correlation with switch ON/OFF demonstrates the field is due to current.
• This is the essence of Oersted’s discovery linking electricity and magnetism.
• Why others are incorrect: A, C, D are not reported effects and do not evidence magnetism.

Question 4:

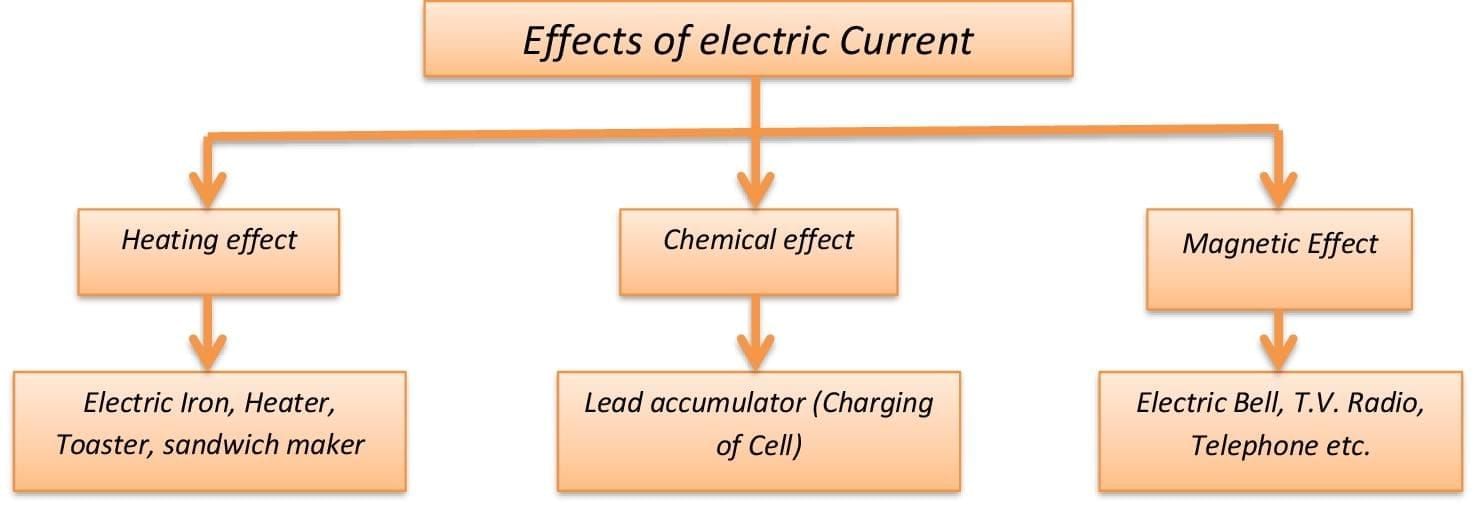

Which device primarily exploits the heating effect of electric current?
Option A: Electric bell
Option B: Room heater
Option C: Loudspeaker
Option D: Electric motor

View Answer

Answer: Option B
Solution:

• Heaters, stoves, irons, immersion rods, and kettles use high-resistance elements (often nichrome) to convert electrical energy into heat.
• Other listed devices rely mainly on magnetic forces and motion, not heat generation.
• Why others are incorrect: A, C, D depend on electromagnetism/mechanical motion rather than deliberate heating.

Question 5:

Which statement about a simple Voltaic cell is correct?
Option A: It uses two identical metal electrodes
Option B: It generates electricity via chemical reactions at two dissimilar electrodes in an electrolyte
Option C: It is rechargeable by reversing current
Option D: It has only solid components, no electrolyte

View Answer

Answer: Option B
Solution:

• A Voltaic (Galvanic) cell uses two dissimilar metals and an electrolyte (acid/salt solution); redox reactions create a potential difference causing current in a closed circuit.
• As reactants deplete, the cell “dies” and stops supplying current.
• Why others are incorrect: A provides no potential difference; C is not true for simple primary Voltaic cells; D contradicts the liquid electrolyte requirement.

Question 6:

Which statement about dry cells (common torch cells) is accurate?
Option A: The zinc can is the negative terminal and the central carbon rod is the positive terminal
Option B: They contain only pure water as electrolyte
Option C: They are designed to be recharged indefinitely
Option D: Both terminals are on the zinc can

View Answer

Answer: Option A
Solution:

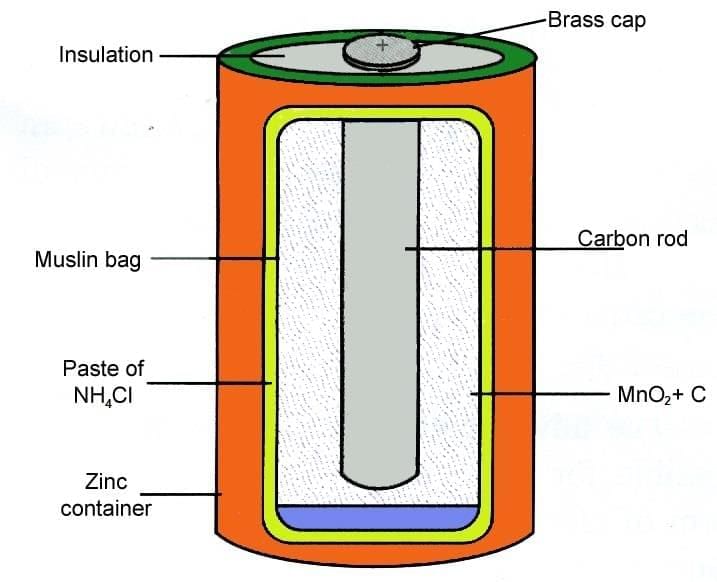

• In a typical dry cell, the zinc container acts as the negative terminal; a central carbon (graphite) rod with a metal cap is the positive terminal; the electrolyte is a moist paste.
• They are primary (single-use) cells and should be disposed of properly when depleted.
• Why others are incorrect: B: Electrolyte is a paste of chemicals, not pure water. C: They are not designed for recharge. D: The positive terminal is on the carbon rod cap.

Dry Cell

Question 7:

Which is the most environment-friendly practice for used batteries?
Option A: Throw in regular trash once “dead”
Option B: Burn them to recover energy
Option C: Dispose at e-waste recycling facilities for safe handling and material recovery
Option D: Bury them in soil to prevent fires

View Answer

Answer: Option C
Solution:

• Batteries may contain acids and metals (e.g., lead, cadmium, nickel, lithium) that can be hazardous; recycling recovers valuable materials and prevents pollution or fires.
• Proper e-waste channels align with safety and sustainability.
• Why others are incorrect: A, B, D are unsafe and environmentally harmful.

Question 8:

Which change will increase the heat produced in the wire for the same time interval?
Option A: Replace nichrome with equal-length copper
Option B: Use two cells in series instead of one
Option C: Reduce the wire’s resistance
Option D: Use a thicker low-resistance wire

View Answer

Answer: Option B
Solution:

• With the same wire, increasing voltage (more cells in series) increases current; heating (I²R·t) rises, so the wire becomes hotter in the same duration.
• Keeping resistance high (nichrome) favors heating for given current.
• Why others are incorrect: A, C, D all reduce resistance and can reduce heating for a given voltage.

Question 9:

Which statement about rechargeable batteries is correct?
Option A: They never degrade with use
Option B: Li-ion batteries dominate modern rechargeable applications
Option C: Rechargeable batteries use only solid electrolytes today
Option D: Recharging works by cooling the battery rapidly

View Answer

Answer: Option B
Solution:

• Lithium-ion batteries are the most common rechargeable type in phones, laptops, EVs; they can be recharged many times but still age and wear out.
• Research into solid-state batteries aims for safer, faster-charging, longer-lasting alternatives.
• Why others are incorrect: A is false—capacity fades. C: Solid-state is emerging, not universal. D: Charging is electrochemical, not cooling-based.

Question 10:

Four coils (iron core, copper core, aluminium core, nichrome core) are each connected to the same cell and compass placement is identical. Where will the compass deflect when current flows?
Option A: Only with iron core
Option B: With iron and copper cores only
Option C: With iron, copper, and aluminium cores only
Option D: In all four cases

View Answer

Answer: Option D
Solution:

• The deflection indicates a magnetic field produced by current in the coil; the field exists regardless of core material, though an iron core strengthens it most.
• Non-magnetic cores (copper, aluminium, nichrome) won’t enhance the field but do not eliminate it; the compass still deflects.
• Why others are incorrect: A–C unnecessarily restrict the effect to certain cores; current in any coil produces a magnetic field detectable by a compass.
