What is the S.I. unit of electric current? |
Card: 1 / 22 |
|
|
Ampere |
Card: 2 / 22 |
|
|
The conventional direction of current flow is along the direction of ___ charge. |
Card: 3 / 22 |
|
|
Positive  |
Card: 4 / 22 |
|
|

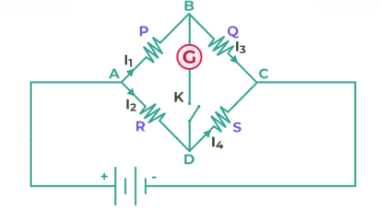

In a balanced Wheatstone bridge, the relationship between resistances is defined by the equation ___ = ___. |
Card: 5 / 22 |
|
|
P/Q = R/S  |
Card: 6 / 22 |
|
|
True or False: An ideal ammeter has infinite resistance. |
Card: 7 / 22 |
|
|
False; an ideal ammeter should have zero resistance. |
Card: 8 / 22 |
|
|
Fill in the blank: The formula for the resistance of a conductor is R = ρL/A, where ρ is the ___. |
Card: 9 / 22 |
|
|
Resistivity |
Card: 10 / 22 |
|
|
The relationship between the temperature coefficient of resistance and resistance is given as Rt = R0 [1 + αt]. What does α represent? |
Card: 11 / 22 |
|
|
 Unlock all Flashcards with EduRev Infinity Plan Starting from @ ₹99 only
|
|
|
|
The temperature coefficient of resistance |
Card: 12 / 22 |
|
|
When using Kirchhoff’s first law, what does the algebraic sum of currents at a junction equal? |
Card: 13 / 22 |
|
|
Zero |
Card: 14 / 22 |
|
|

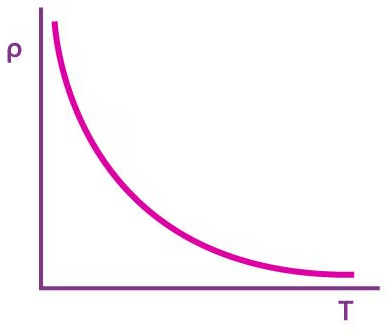

True or False: The resistance of semiconductors increases with temperature. |
Card: 15 / 22 |
|
|
False; the resistance of semiconductors decreases with temperature.  |
Card: 16 / 22 |
|
|

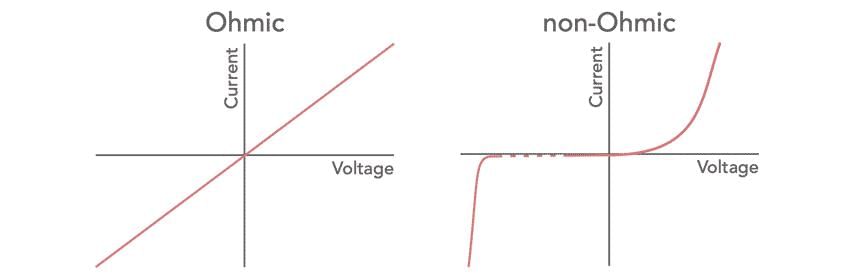

What is the relationship between current and voltage in an ohmic conductor? |
Card: 17 / 22 |
|
|
It is a linear relationship, represented by V = IR.  |
Card: 18 / 22 |
|
|
The internal resistance of an ideal cell is ___ . |
Card: 19 / 22 |
|
|
Zero |
Card: 20 / 22 |
|
|
What is the effect on resistance when a wire is stretched to reduce its radius to 1/nth of its original value? |
Card: 21 / 22 |
|
|
Its resistance increases by n4 times. |
Card: 22 / 22 |
|
|
