APSC AE CE Paper 1 Mock Test - 6 - Civil Engineering (CE) MCQ


Test Description

30 Questions MCQ Test APSC AE CE Mock Test Series 2025 - APSC AE CE Paper 1 Mock Test - 6

APSC AE CE Paper 1 Mock Test - 6 for Civil Engineering (CE) 2025 is part of APSC AE CE Mock Test Series 2025 preparation. The APSC AE CE Paper 1 Mock Test - 6 questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The APSC AE CE Paper 1 Mock Test - 6 MCQs are made for Civil Engineering (CE) 2025 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for APSC AE CE Paper 1 Mock Test - 6 below.
Solutions of APSC AE CE Paper 1 Mock Test - 6 questions in English are available as part of our APSC AE CE Mock Test Series 2025 for Civil Engineering (CE) & APSC AE CE Paper 1 Mock Test - 6 solutions in Hindi for APSC AE CE Mock Test Series 2025 course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt APSC AE CE Paper 1 Mock Test - 6 | 100 questions in 120 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study APSC AE CE Mock Test Series 2025 for Civil Engineering (CE) Exam | Download free PDF with solutions
APSC AE CE Paper 1 Mock Test - 6 - Question 1
Save

If the quadrantal bearing of a line is N25∘W, then the Whole Circle Bearing of the line is

Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 1

Quadrantal circle bearing = N 25∘W

Whole circle bearing =360∘−25∘=335∘

Hence, the correct option is (c).

APSC AE CE Paper 1 Mock Test - 6 - Question 2
Save

The head loss in turbulent flow in a pipe varies

Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 2
hf = 4fLV2/2gD

The head loss in turbulent flow in a pipe varies approximately as the square of the velocity.

Clear all your doubts with EduRev
APSC AE CE Paper 1 Mock Test - 6 - Question 3
Save

Which of the following material has a Poisson's ratio of more than 1?

Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 3
As the maximum value of Poisson's ratio cannot exceed 0.5
APSC AE CE Paper 1 Mock Test - 6 - Question 4
Save

The beam shown in the figure is:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 4
(Here re = 6)

(Dse = 6 - 3 = 3)

APSC AE CE Paper 1 Mock Test - 6 - Question 5
Save

The most commonly used base for timber painting is -
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 5
Zinc white is only for aluminum surfaces.

And white lead for wooden surfaces.

APSC AE CE Paper 1 Mock Test - 6 - Question 6
Save

Quicksand is a-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 6
Quick Sand condition If the seepage pressure becomes equal to the pressure due to the submerged weight of the soil, then evidently, the effective pressure is reduced to zero. In such a limiting case, the Cohesionless soil loses all its shear strength, and the soil particles will tend to move up in the direction of flow. This phenomenon of the lifting of soil particles is called the quick condition or boiling condition, or quick sand. The hydraulic gradient corresponding to this situation (Just starting) is called critical hydraulic gradient ((ic)) Where,

G= Specific gravity

e= void ratio

APSC AE CE Paper 1 Mock Test - 6 - Question 7
Save

Nitrates more than 45 mg/l in water lead to a disease called -
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 7
The pressure of too much nitrate in water may adversely affect the infant’s health, causing a disease technically called “methemoglobinemia.”
APSC AE CE Paper 1 Mock Test - 6 - Question 8
Save

A tension member, if subjected to a possible reversal of stress due to wind, the slenderness-ratio of the member should not exceed.
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 8
The compression member with

1) Dead load and imposed load=180,

2) with wind and earthquake action=250,

3) with lateral torsion buckling-300.

Now, the Tension member

1) With the reversal of the direct stress other than wind or earthquake -180.

2) Reversal of the stress with wind and earthquake-350.

3) Member always under tension other than pre-tensioned member-400.

APSC AE CE Paper 1 Mock Test - 6 - Question 9
Save

The distribution system in water supplies is designed based on:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 9
The distribution system in water supplies is designed on the basis of gravitational pull, such as the purified water in the gravity system flow wholly under gravity.
APSC AE CE Paper 1 Mock Test - 6 - Question 10
Save

In volume batching of concrete boxes of size:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 10

In volume batching of concrete boxes of size:  300 X 380 X 380 are used

APSC AE CE Paper 1 Mock Test - 6 - Question 11
Save

A doubly reinforced beam is considered less economical than a singly reinforced beam because
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 11

For doubly reinforced section, tension reinforcement is designed for stress of 0.87fy but for compression reinforcement a lower stress must be used. The reason being that steel may buckle between shear stirrups under compressive stresses. And hence doubly reinforced beam is considered less economical because compressive steel is under stressed.

APSC AE CE Paper 1 Mock Test - 6 - Question 12
Save

If d and n are the effective depth and depth of neutral axis respectively of a singly reinforced beam, the lever arm of the beam is-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 12
Lever arm of the beam (LA) (=(d−(n/3)))

Hence the option D is correct.

APSC AE CE Paper 1 Mock Test - 6 - Question 13
Save

When slenderness ratio in column lies between 32 to 120, it is known as-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 13
The columns with their lengths varying from 8 times their diameter to 30 times their respective diameters or their slenderness ratio lying between 32 and 120 are classified under the medium column.

Hence the option C is correct.

APSC AE CE Paper 1 Mock Test - 6 - Question 14
Save

Standard loads are given in-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 14
IS 875-1964: Code of practice for Structural Safety of Buildings; Loading Standards.

Hence the option D is correct.

APSC AE CE Paper 1 Mock Test - 6 - Question 15
Save

The characteristic strength of concrete in the actual structure is taken as:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 15
For design purposes, the compressive strength of concrete in the structure shall be assumed to be 0.67 times the characteristic strength. The partial safety factor = 1.5 shall be applied in addition to this.

Hence the option C is correct.

APSC AE CE Paper 1 Mock Test - 6 - Question 16
Save

Re-oxygenation curve of a polluted stream-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 16
To counterbalance the consumption of D.O. due to de-oxygenation atmosphere supplies oxygen to the water. This is known as re-Oxygenation. It Increases with the time of flow from the point of pollution.

Hence the correct answer is option B.

APSC AE CE Paper 1 Mock Test - 6 - Question 17
Save

Rapid hardening Portland cement possesses:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 17
Rapid hardening Portland cement is similar to ordinary Portland cement except that it is ground finer, possesses more (C3S), and less (C2S) than ordinary Portland cement.

Hence the correct answer is option C.

APSC AE CE Paper 1 Mock Test - 6 - Question 18
Save

In plastic analysis, which of the following pair are/is correctly matched?
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 18
Solid circular rod has a shape factor of 1.7

The hollow circular rod has a shape factor of 1.27

Rectangle and square have a shape factor of 1.5

Hence the correct answer is option (c).

APSC AE CE Paper 1 Mock Test - 6 - Question 19
Save

In a pre-tensioning scheme, prestress load is transferred in
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 19
Either single or multi, depending on the number of wires and schedule of cutting. The tension is applied to the tendons before casting the concrete. The stages of pre-tensioning are described next. In the pre-tensioning system, the high-strength steel tendons are pulled between two end abutments (also called bulkheads) before the casting of concrete.

Hence the correct answer is option D.

APSC AE CE Paper 1 Mock Test - 6 - Question 20
Save

In designing hydraulic structures in alluvial rivers, the equation used to calculate the normal depth of scouring R for discharge intensity of (qm3/s/m) is.
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 20
In designing hydraulic structures in alluvial rivers, the equation used to calculate the normal depth of scouring R for discharge intensity of (qm3/s/m) is.(R = 1.35(q2/f)1/3)

Hence the correct answer is option C.

APSC AE CE Paper 1 Mock Test - 6 - Question 21
Save

According to Terzaghi, the net ultimate bearing capacity of clay is given by-

Where (Nq, Nγ, and Ne) are bearing capacity factors, (c) is the cohesion.
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 21
Where (Nq, Nγ, and Ne) are bearing capacity factors, C is the cohesion.
APSC AE CE Paper 1 Mock Test - 6 - Question 22
Save

The delayed flow that reaches the river mainly as groundwater is known as-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 22
Base Flow The delayed flow that reaches a stream essentially as groundwater flow is called base flow.
APSC AE CE Paper 1 Mock Test - 6 - Question 23
Save

A manhole is generally provided at each:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 23
A manhole is generally provided at each:

  • Bend

  • Junction

  • Change of gradient

APSC AE CE Paper 1 Mock Test - 6 - Question 24
Save

The difference between face and face right observation of a theodolite is 3'. The error is:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 24
Error is half the difference between the face left and face right observation. This discussion on The difference between face left and face right observation of a theodolite is 3'.
APSC AE CE Paper 1 Mock Test - 6 - Question 25
Save

Crushing strength of good building stone should be more than:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 25
Crushing strength or compressive strength of a stone is the load per unit area where the stone starts cracking. It should be greater than 1000 kg/cm2 to ensure sufficient strength for use in construction.
APSC AE CE Paper 1 Mock Test - 6 - Question 26
Save

While designing combined footing, the resultant of the column loads passes, through the center of gravity of the footing slab such that the net soil pressure obtained is-
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 26
It is desirable to design combined footing so that the centroid of the footing area coincides with the resultant of the two-column loads. This produces uniform bearing pressure over the entire area and forestalls a tendency for the footing to tilt.

Hence, the correct option is (C)

APSC AE CE Paper 1 Mock Test - 6 - Question 27
Save

Which of the following defect arise due to seasoning of timber?
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 27

Defects arise in timber during its seasoning are

Bow: Curvature of timber in the direction of its length is known as Bow.

Cup: Curvature in the transverse direction of timber is known as a cup.

Twist: It is the spiral distortion in the direction of timber.

Spring: Curvature of the timber in its own plane

Note: While Upsets and Rind galls are the defects arises due to natural forces.

While Upsets: (crushing and compression)

Rind galls : (Improper cutting of branches)

Hence, the correct option is (A)

APSC AE CE Paper 1 Mock Test - 6 - Question 28
Save

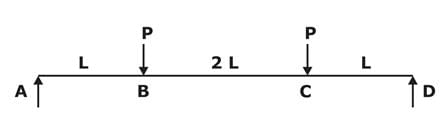

Which portions of the loaded beam shown in the given figure are subjected to pure bending?
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 28
In pure bending BM is const. = dM/dx = 0

or shear force = 0

Hence, the correct option is (D).

APSC AE CE Paper 1 Mock Test - 6 - Question 29
Save

The main objective of compaction of concrete is:
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 29
Compaction of concrete is the process adopted for expelling the entrapped air as far as possible from the concrete to achieve the highest possible density of the compacted mass.

  • Compaction improves the fluidity of concrete and with the reduction of internal friction, packing of coarse aggregates take place

  • A well-compacted concrete is free of the loose pockets and air bubbles of entrapped air

  • The main purpose of compaction of concrete is to get a dense mass without voids, to get the concrete to surround all reinforcement, and to fill all corners i.e. to provide intimate contact between the concrete and embedded materials

APSC AE CE Paper 1 Mock Test - 6 - Question 30
Save

What is the range of fineness modulus of sand which is least suitable for making a good concrete
Detailed Solution for APSC AE CE Paper 1 Mock Test - 6 - Question 30
