APSC AE CE Paper 1 Mock Test - 7 - Civil Engineering (CE) MCQ

A beam simply supported at both the ends, of length 'l' carries two equal unlike couples 'M' at two ends. If the flexural rigidity EI is constant, then the central deflection of the beam is given by-

Intersection method in plane table surveying is most suitable for:

The distribution system in water supplies is designed on the basis of:

Cross staff is used :

Minimum pitch of rivets should not be less than how many times the gross diameter of the rivet?

To the calculated area of cover plates of build-up beam, an allowance for rivet hole to be added is-

The concrete mix which causes difficulty is obtaining a smooth finish is known to possess.

Sewage treatment units are normally designed for:

The boundary between the pavement and shoulder in known as:

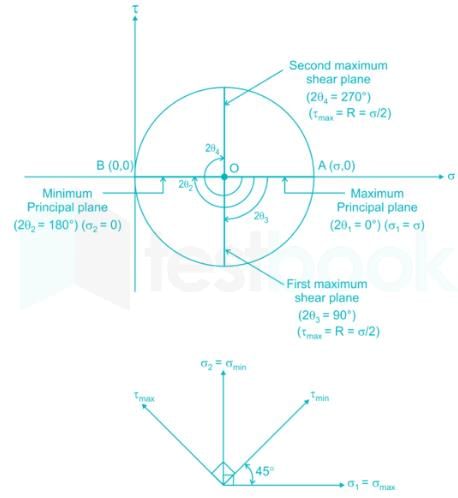

The angle between the principal plane and the plane of maximum shear is

The S-curve is used-

In a reverse curve, the superelevation provided at the point of reverse curvature is-

The extreme bending moment caused by the total of a uniformly distributed load (W) on a cantilever beam of span L is-

For completion of a project, the critical path of a network represents-

The distribution system in water supplies is designed on the basis of:

Degree of static indeterminacy of a rigid-jointed plane frame having 15 members, 3 reaction components, and 14 joints is-

Permissible compressive strength of M 200 concrete grade is-

Which one of the following states falls under the 'Limit state of Serviceability' as per IS - 456?

The effective length of a fillet weld is taken as the actual length-

The length of the straight portion of a bar beyond the end of the hook should be at least-

Directions: In this question, the second figure of the problem figures bears a certain relationship to the first figure. Similarly, one of the figures in the answer figures bears the same relationship to the third problem figure. You have to select the figure from the set of answer figures which would replace the sign of the question mark (?).

If wind and earthquake loads are considered then the permissible stress in steel structure are :

This set of Civil Engineering Drawing Multiple Choice Questions & Answers (MCQs) focuses on “Estimation in R.C.C. Structures”.

What does R.C.C. stand for?

IN a closed traverse, the algebraic sum of departure and latitude must be equal to-

Cofferdam is a:

At a certain stage under elastic loading, the elongation observed was 0.03 mm, the gauge length was 150 mm and the modulus of elasticity was 2 × 10⁵ N/mm². What was the stress at the location?

The degree of static indeterminacy of the beam shown in fig -
